Optical Oxygen Sensor Compared to Conventional Oxygen Sensors

What are the key benefits and applications?

Recognised as a leading supplier of advanced gas and fluid sensor technology, SST Sensing Ltd offers a comprehensive range of oxygen measurement sensor solutions.

Complementing the company’s high-performance Zirconium Dioxide product offering, the LuminOx family uses proprietary solid-state technology to deliver sensors with the cost effectiveness found in legacy electrochemical oxygen sensors, but with a series of key additional benefits.

The optically-based, factory calibrated LuminOx sensors rely on fluorescence quenching by Oxygen. Pulsed light is directed onto an oxygen-sensitive fluorescent dye causing it to fluoresce. The rate at which this fluorescence decays is inversely proportional to the amount of oxygen present in the vicinity.

Oxygen detection has historically relied on conventional oxygen sensors such as electrochemical measurement mechanisms which rely on an electrolyte which is consumed over a short period of time. Typical feedback on the lifetime customers get from an electrochemical sensor tends to be around 2 years before needing replacing. This type of technology is a self-degrading, galvanic cell that operates like a metal/air battery. They are constantly depleting in the presence of oxygen and lifetime is generally restricted by the liquid electrolyte and consumable lead anode.

A key advantage to the LuminOx sensor family is that the technology has no lead components and exposure to oxygen does not deplete the fluorescent dye.

The LuminOx oxygen sensors can be installed in applications for a much longer period of time than competing oxygen sensors in this price bracket. The stated lifetime for these sensors is 5 years.

LuminOx has minimal cross sensitivity with other gases as luminescence quenching by oxygen is highly selective. Electrochemical sensors generally come with a list of cross-sensitive gases.

Electrochemical sensors are sensitive to temperature and therefore require external compensation, using hardware or software methods. LuminOx is fully compensated for temperature and barometric pressure. Not only does LuminOx measure and compensate for temperature, but its RS232 serial communication interface allows the gas temperature and pressure to be measured and transmitted along with the oxygen value – an added bonus.

The LuminOx oxygen sensor family is used in various applications, in the medical, industrial and transportation markets. The measuring tasks fall into three main categories. Controlling of low oxygen levels, maintaining ambient oxygen levels and prevention of oxygen depletion.

Typical applications for Optical Oxygen Sensors include:

  • Controlled atmosphere/storage of perishable goods
  • Incubators and other hypoxic life science products
  • Biogas monitoring
  • Oxygen depletion alarm, area monitoring
  • Altitude training roomsA
  • Ambient air monitoring
  • Beverage nitrogen generators
  • Portable/remote datalogging

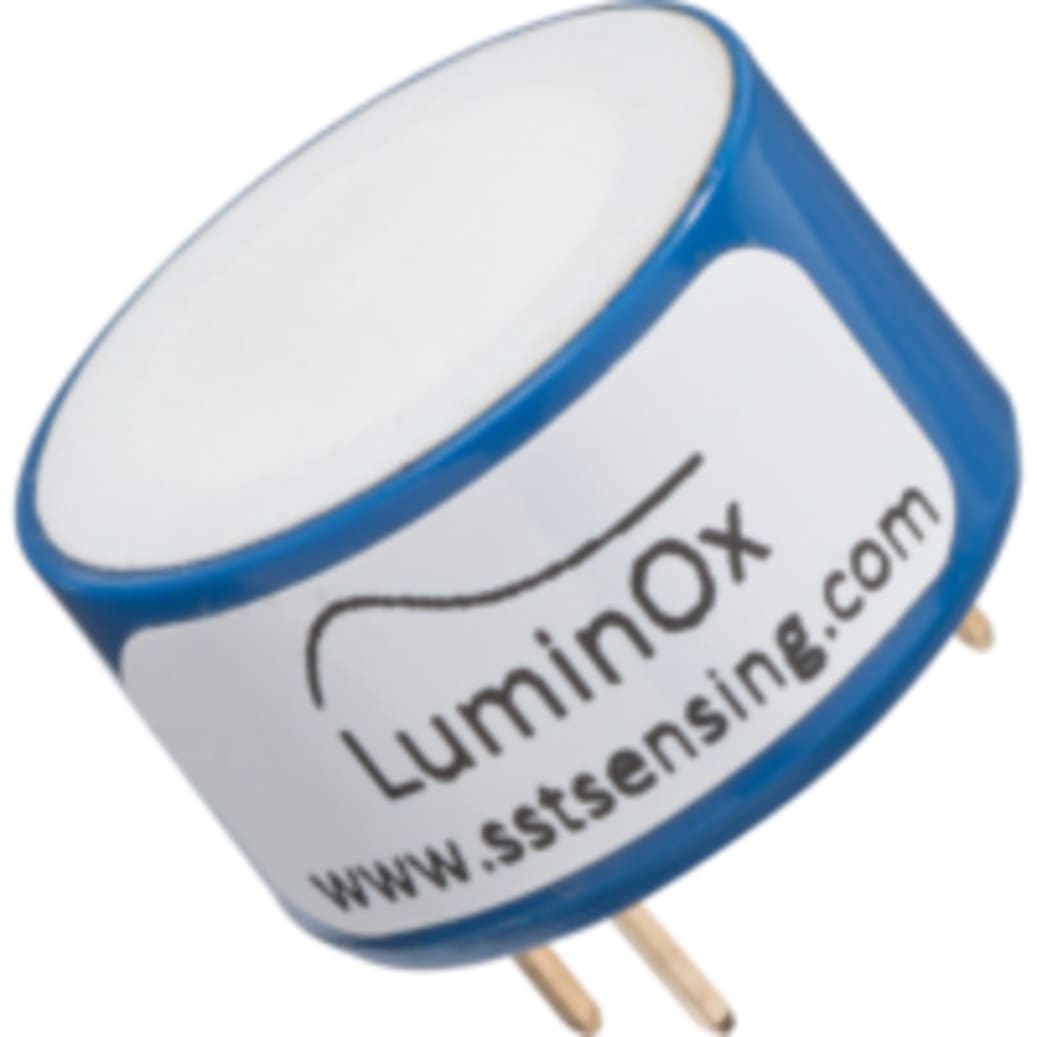

LuminOx Optical Oxygen Sensor

Unlike electrochemical oxygen sensor technology, LuminOx is a fluorescence-based, compact oxygen sensor that benefits from having a built-in pressure sensor, temperature compensation and a digital output. It is a cost effective solution that is low in power, long life, non-depleting and RoHS compliant with negligible cross sensitivity.

A common application for SST’s LuminOx optical oxygen sensors is within the medical market for live cell microscopy in hypoxic environments. LuminOx is successfully being used in IVF incubators to monitor lower oxygen levels which assists in increasing the number of successful embryo fertilisations.

Keeping perishables fresh and ripe during transportation is a challenge. The LuminOx optical oxygen sensors are currently used in storage containers that ship perishables from one end of the globe to the other. The sensors ensure the oxygen and temperature levels are maintained at a low level to assist in preventing the ripening of goods during transportation. This process maintains the quality, look and taste of the fruit for it arriving at its final destination.

Share this article with your friends
Our primary goal is to deliver the required sensing and control solutions to our customers which exactly meet their technical and commercial sensor requirements. This can be achieved through our standard range of sensors or providing customer specific sensor solutions. We have been designing and manufacturing fluid and gas sensing solutions for over 15 years. Where a specific solution is required, SST Sensing Ltd will identify the suitable technology and use this as a building block to provide a bespoke customer solution.
