A third of the world’s population has no access to sanitation facilities, which has a negative effect on general hygiene and leads to water contamination. This is why the Viennese design studio EOOS has been working on innovative toilet concepts and has designed a public urinal, which cleans itself by means of marsh plants. s::can sensors are installed in this self-sufficient toilet. This toilet concept is economically viable and environmentally sustainable for many years.
The museum KUNST HAUS WIEN invited EOOS to present their research material with information, photographs and objects about the idea and use of plant-based purification systems for urinals in the context of an exhibition. The use of marsh plants is not a new: The designer of the Kunst Haus, Friedensreich Hundertwasser (1928-2000) has already studied plant-based wastewater purification extensively and installed toilets in his homes and studios that used aquatic plants to purify water.
The self-sufficient urinal

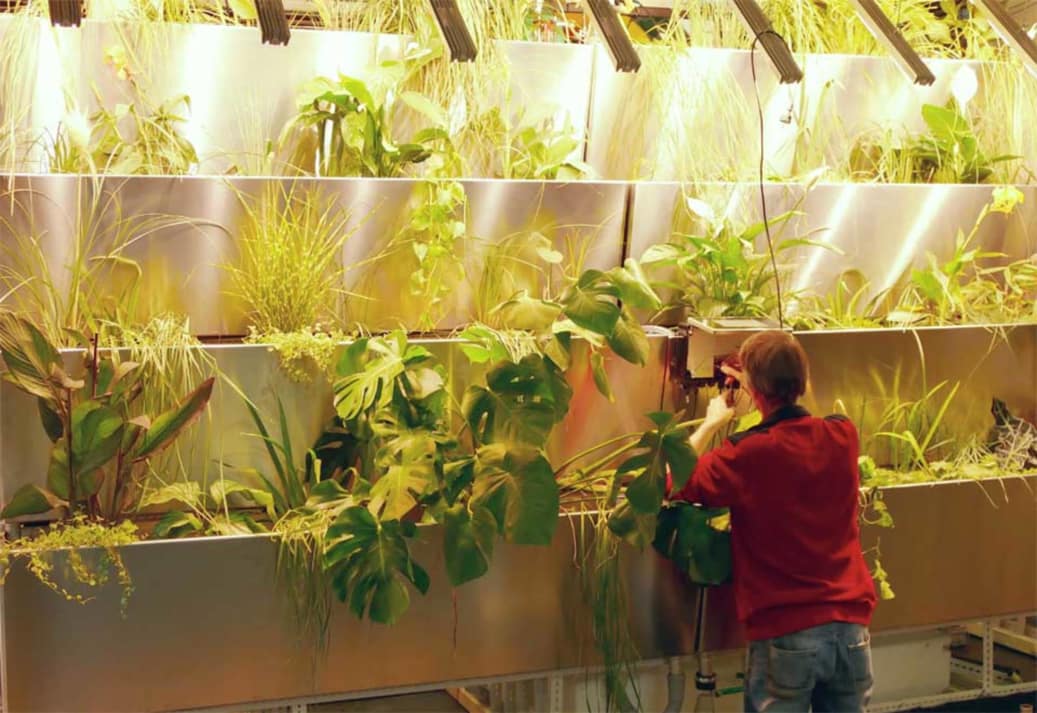

The heart of the exhibition is the prototype of a self-sufficient urinal that uses plant-based purification technology for public spaces. From the front, it looks like a beautifully designed mini garden, but there is much more in the green house. Behind the green wall is a small room where the unisex urinal stands. After the visitor has relieved himself, the wastewater together with urine is directed to the upper end of wetland. It runs through three levels, which are equipped with marsh plants. The plants absorb any substances from the urine and thereby clean the wastewater.
Monitoring graywater with s::can
To observe and ensure the water purification, two i::scans from s::can were installed in the toilet facilities. One i::scan is located in the influent, where the graywater flows in and measures the water quality there. The second sensor is located in the drain where the purified water comes out. A con::cube terminal is used to monitor and to visualize the water quality and how well the organic waste water treatment plant has cleaned the water. The observed values are compared and allow reporting how much the water has been purified.
